IP Camera |
Camera |
Image Sensor |
1/2.5" Progressive Scan CMOS |
Video Resolution |
50 Hz: 12.5 fps (3840 X 2160, 2560 X 1440, 1920 X 1080, 1280 X 720)
60 Hz: 15 fps (3840 X 2160, 2560 X 1440, 1920 X 1080, 1280 X 720) |
Sub Stream |
50Hz: 25 fps (640 X 480, 640 X 360)
60Hz: 30 fps (640 X 480, 640 X 360) |
Video Compression |
H.265+/H.265 |
Video Bitrate |
32 Kbps — 16 Mbps |
Audio Compression |
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
Audio Input/Output |
Built-in Microphone |
Lens |
2.8 mm |
Min. Illumination |
0.01 Lux@(F2.0, AGC On) |
Angle of View |
Horizontal FoV 102°, Vertical FoV 53°, Diagonal FoV 123° |
Number of Infrared LEDs |
2 pcs |
Night Vision Distance |
Up to 100 ft/30 m |
DNR |
3D DNR |
Wide Dynamic Range |
120 dB WDR |
Network Storage |
Local Storage & NAS (NFS, SMB/CIFS) |
ONVIF |
Support |
Day/Night Switch |
Day, Night, Auto, Schedule |
Ethernet |
RJ45 X1 (10 M/100 M) |
General |
Housing |
Aluminum Alloy for Main Body |
Color |
White |
Operating Power |
PoE (802.3af), 12 V DC ± 25% |
Storage |
Built-in MicroSD/SDHC/SDXC Slot, up to 256 GB |
Hardware Reset |
Yes |
Operating Temperature |
-22 °F – 140 °F /-30 °C – 60 °C |
Indoor/Outdoor |
Indoor/Outdoor |

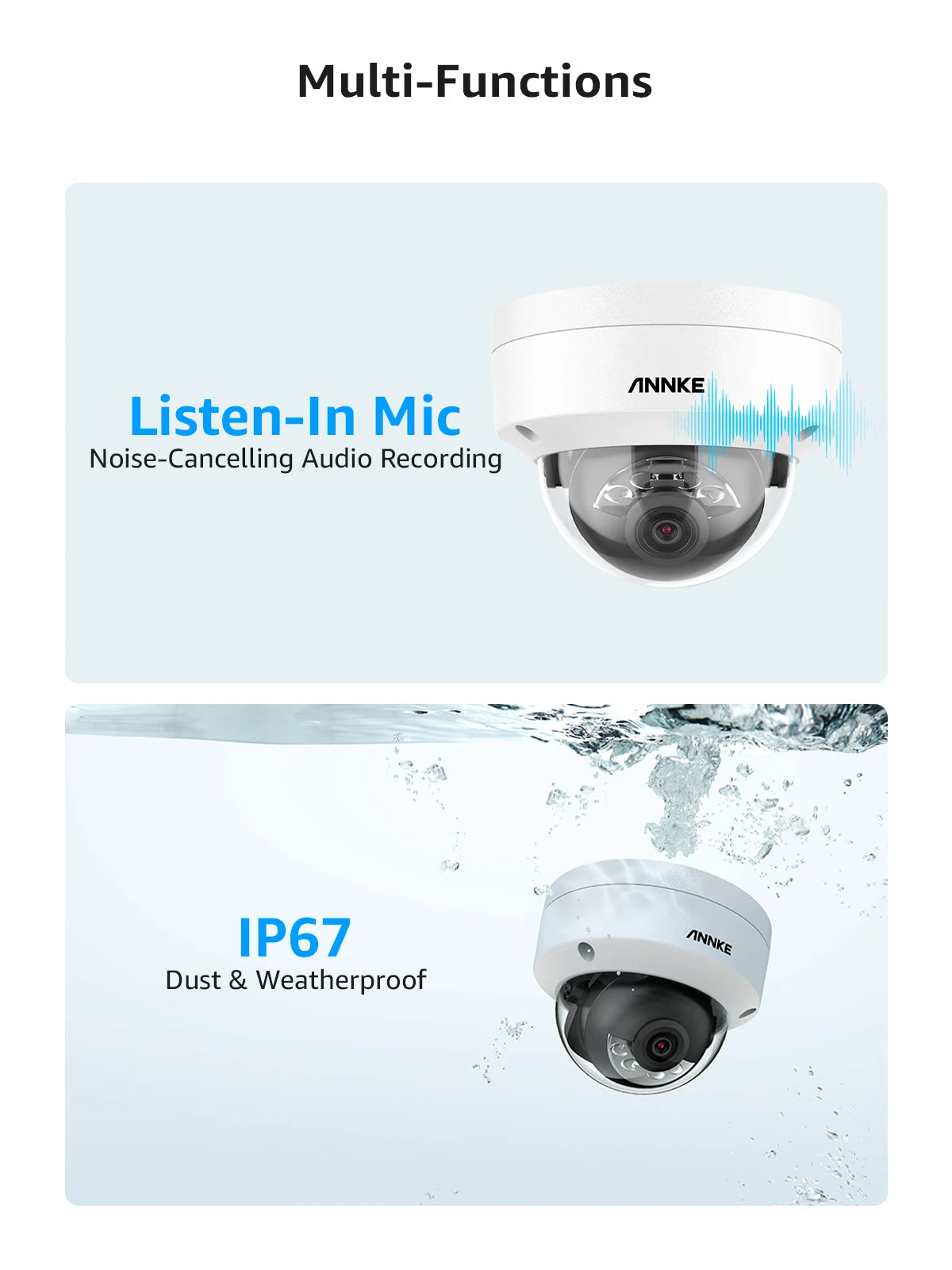

Weatherproof Rating |
IP67 & IK10 |
Dimension (L X W X H) |
Ø120 X 92.2 mm (4.7" X 3.6") |
Weight |
0.9 lb./420 g |
